1. Levenberg Marquardt Fitting#
1.1. Conventions and best approaches#
S0 Signal for unbound state
S1 Signal for bound state
K equilibrium constant (Kd or pKa)
order data from unbound to bound (e.g. cl: 0–>150 mM; pH 9–>5)
1.2. Initial imports#
[1]:
import numpy as np
import scipy
import pandas as pd
import matplotlib.pyplot as plt
import seaborn as sb
import lmfit
1.3. Single Cl titration.#
[2]:
df = pd.read_table("../../tests/data/copyIP.txt")
sb.scatterplot(
data=df,
x="cl",
y="F",
hue=df.cl * df.F,
palette="crest",
s=200,
alpha=0.8,
legend=False,
)
[2]:
<Axes: xlabel='cl', ylabel='F'>
[3]:
def residual(pars, x, y=None):
S0 = pars["S0"]
S1 = pars["S1"]
Kd = pars["Kd"]
model = (S0 + S1 * x / Kd) / (1 + x / Kd)
if y is None:
return model
return y - model
params = lmfit.Parameters()
params.add("S0", value=df.F[0])
params.add("S1", value=100)
params.add("Kd", value=50, vary=True)
out = lmfit.minimize(
residual,
params,
args=(
df.cl,
df.F,
),
)
xdelta = (df.cl.max() - df.cl.min()) / 500
xfit = np.arange(df.cl.min() - xdelta, df.cl.max() + xdelta, xdelta)
yfit = residual(out.params, xfit)
print(lmfit.fit_report(out.params))

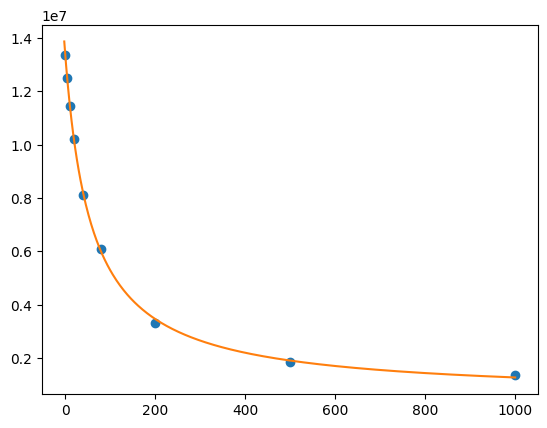

plt.plot(df.cl, df.F, "o", xfit, yfit, "-")
[[Variables]]
S0: 13408867.8 +/- 87130.3362 (0.65%) (init = 1.33579e+07)
S1: 563537.064 +/- 106411.960 (18.88%) (init = 100)
Kd: 58.3187767 +/- 2.24671605 (3.85%) (init = 50)
[[Correlations]] (unreported correlations are < 0.100)
C(S1, Kd) = -0.7123
C(S0, Kd) = -0.6562
C(S0, S1) = +0.2747
[3]:
[<matplotlib.lines.Line2D at 0x7f52873b9c90>,
<matplotlib.lines.Line2D at 0x7f528737d750>]
[4]:
def residuals(p):
S0 = p["S0"]
S1 = p["S1"]
Kd = p["Kd"]
model = (S0 + S1 * df.cl / Kd) / (1 + df.cl / Kd)
return model - df.F
mini = lmfit.Minimizer(residuals, params)
res = mini.minimize()
ci, tr = lmfit.conf_interval(mini, res, sigmas=[0.68, 0.95], trace=True)
print(lmfit.ci_report(ci, with_offset=False, ndigits=2))
print(lmfit.fit_report(res, show_correl=False, sort_pars=True))
95.00% 68.00% _BEST_ 68.00% 95.00%
S0:13197616.3413314946.3513408867.7913503300.3813622729.13
S1:300911.47447991.63563537.06677869.66819977.61
Kd: 53.13 55.96 58.32 60.79 64.07
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 17
# data points = 9
# variables = 3
chi-square = 8.3839e+10
reduced chi-square = 1.3973e+10
Akaike info crit = 212.594471
Bayesian info crit = 213.186145
[[Variables]]
Kd: 58.3187767 +/- 2.24671605 (3.85%) (init = 50)
S0: 13408867.8 +/- 87130.3362 (0.65%) (init = 1.33579e+07)
S1: 563537.064 +/- 106411.960 (18.88%) (init = 100)
[5]:
names = res.params.keys()
i = 0
gs = plt.GridSpec(4, 4)
sx = {}
sy = {}
for fixed in names:
j = 0
for free in names:
if j in sx and i in sy:
ax = plt.subplot(gs[i, j], sharex=sx[j], sharey=sy[i])
elif i in sy:
ax = plt.subplot(gs[i, j], sharey=sy[i])
sx[j] = ax
elif j in sx:
ax = plt.subplot(gs[i, j], sharex=sx[j])
sy[i] = ax
else:
ax = plt.subplot(gs[i, j])
sy[i] = ax
sx[j] = ax
if i < 3:
plt.setp(ax.get_xticklabels(), visible=True)
else:
ax.set_xlabel(free)
if j > 0:
plt.setp(ax.get_yticklabels(), visible=False)
else:
ax.set_ylabel(fixed)
rest = tr[fixed]
prob = rest["prob"]
f = prob < 0.96
x, y = rest[free], rest[fixed]
ax.scatter(x[f], y[f], c=1 - prob[f], s=25 * (1 - prob[f] + 0.5))
ax.autoscale(1, 1)
j += 1
i += 1

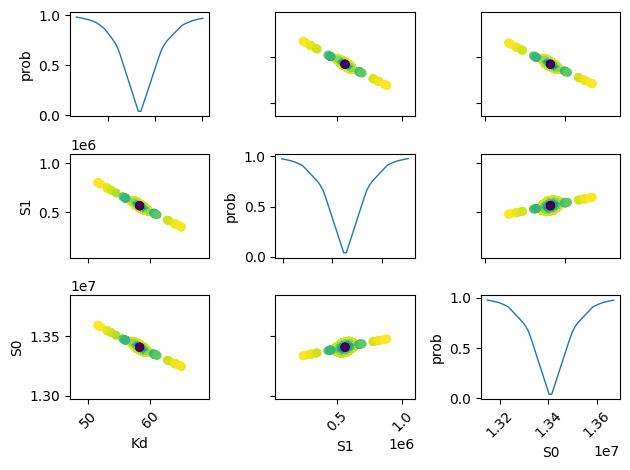

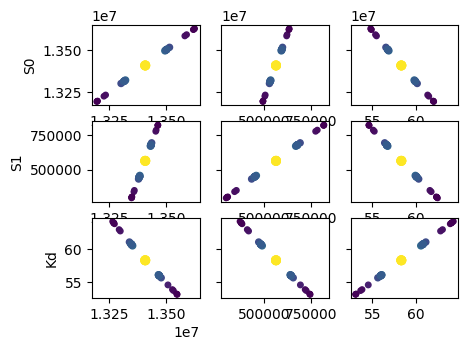

[6]:
names = list(res.params.keys())
plt.figure()
for i in range(3):
for j in range(3):
indx = 9 - j * 3 - i
ax = plt.subplot(3, 3, indx)
ax.ticklabel_format(style="sci", scilimits=(-2, 2), axis="y")
# set-up labels and tick marks
ax.tick_params(labelleft=False, labelbottom=False)
if indx in (1, 4, 7):
plt.ylabel(names[j])
ax.tick_params(labelleft=True)
if indx == 1:
ax.tick_params(labelleft=True)
if indx in (7, 8, 9):
plt.xlabel(names[i])
ax.tick_params(labelbottom=True)
[label.set_rotation(45) for label in ax.get_xticklabels()]
if i != j:
x, y, m = lmfit.conf_interval2d(mini, res, names[i], names[j], 20, 20)
plt.contourf(x, y, m, np.linspace(0, 1, 10))
x = tr[names[i]][names[i]]
y = tr[names[i]][names[j]]
pr = tr[names[i]]["prob"]
s = np.argsort(x)
plt.scatter(x[s], y[s], c=pr[s], s=30, lw=1)
else:
x = tr[names[i]][names[i]]
y = tr[names[i]]["prob"]
t, s = np.unique(x, True)
f = scipy.interpolate.interp1d(t, y[s], "slinear")
xn = np.linspace(x.min(), x.max(), 50)
plt.plot(xn, f(xn), lw=1)
plt.ylabel("prob")
ax.tick_params(labelleft=True)
plt.tight_layout()

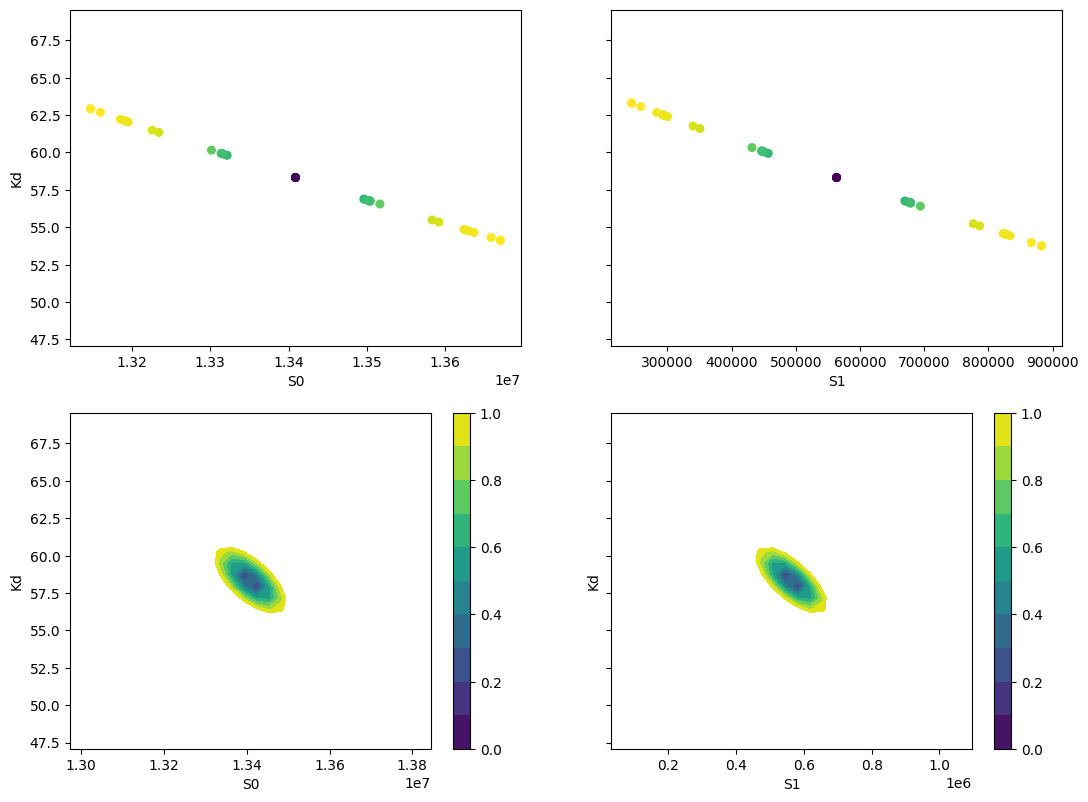

[7]:
lmfit.report_fit(out.params, min_correl=0.25)
ci, trace = lmfit.conf_interval(mini, res, sigmas=[1, 2], trace=True)
lmfit.printfuncs.report_ci(ci)
fig, axes = plt.subplots(2, 2, figsize=(12.8, 9.6), sharey=True)
cx1, cy1, prob = trace["S0"]["S0"], trace["S0"]["Kd"], trace["S0"]["prob"]
cx2, cy2, prob2 = trace["S1"]["S1"], trace["S1"]["Kd"], trace["S1"]["prob"]
axes[0][0].scatter(cx1, cy1, c=prob, s=30)
axes[0][0].set_xlabel("S0")
axes[0][0].set_ylabel("Kd")
axes[0][1].scatter(cx2, cy2, c=prob2, s=30)
axes[0][1].set_xlabel("S1")
cx, cy, grid = lmfit.conf_interval2d(mini, res, "S0", "Kd", 30, 30)
ctp = axes[1][0].contourf(cx, cy, grid, np.linspace(0, 1, 11))
fig.colorbar(ctp, ax=axes[1][0])
axes[1][0].set_xlabel("S0")
axes[1][0].set_ylabel("Kd")
cx, cy, grid = lmfit.conf_interval2d(mini, res, "S1", "Kd", 30, 30)
ctp = axes[1][1].contourf(cx, cy, grid, np.linspace(0, 1, 11))
fig.colorbar(ctp, ax=axes[1][1])
axes[1][1].set_xlabel("S1")
axes[1][1].set_ylabel("Kd")
[[Variables]]
S0: 13408867.8 +/- 87130.3362 (0.65%) (init = 1.33579e+07)
S1: 563537.064 +/- 106411.960 (18.88%) (init = 100)
Kd: 58.3187767 +/- 2.24671605 (3.85%) (init = 50)
[[Correlations]] (unreported correlations are < 0.250)
C(S1, Kd) = -0.7123
C(S0, Kd) = -0.6562
C(S0, S1) = +0.2747
95.45% 68.27% _BEST_ 68.27% 95.45%
S0:-217226.68396-94491.4465413408867.78781+95008.79621+219988.97144
S1:-270193.31667-116252.05687563537.06418+115024.41863+263650.82002
Kd: -5.32812 -2.37783 58.31878 +2.48963 +5.92424
[7]:
Text(0, 0.5, 'Kd')
[8]:

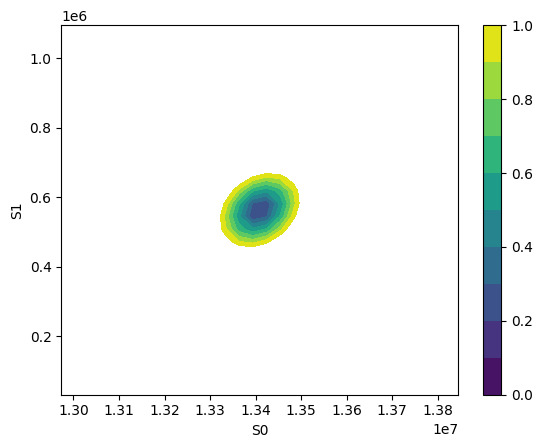

x, y, grid = lmfit.conf_interval2d(mini, res, "S0", "S1", 30, 30)
plt.contourf(x, y, grid, np.linspace(0, 1, 11))
plt.xlabel("S0")
plt.colorbar()
plt.ylabel("S1")
[8]:
Text(0, 0.5, 'S1')
1.4. Fit titration with multiple ts#
For example data collected with multiple labelblocks in Tecan plate reader.
“A01”: pH titration with y1 and y2.
[9]:
df = pd.read_csv("../../tests/data/A01.dat", sep=" ", names=["x", "y1", "y2"])
df = df[::-1].reset_index(drop=True)
df
[9]:
| x | y1 | y2 | |
|---|---|---|---|
| 0 | 9.030000 | 29657.0 | 22885.0 |
| 1 | 8.373333 | 35200.0 | 16930.0 |
| 2 | 7.750000 | 44901.0 | 9218.0 |
| 3 | 7.073333 | 53063.0 | 3758.0 |
| 4 | 6.460000 | 54202.0 | 2101.0 |
| 5 | 5.813333 | 54851.0 | 1542.0 |
| 6 | 4.996667 | 51205.0 | 1358.0 |
1.4.1. lmfit of single y1 using analytical Jacobian#
It computes the Jacobian of the fz. Mind that the residual (i.e. y - fz) will be actually minimized.
[10]:
import sympy
x, S0_1, S1_1, K = sympy.symbols("x S0_1 S1_1 K")
f = (S0_1 + S1_1 * 10 ** (K - x)) / (1 + 10 ** (K - x))
print(sympy.diff(f, S0_1))
print(sympy.diff(f, S1_1))
print(sympy.diff(f, K))
1/(10**(K - x) + 1)
10**(K - x)/(10**(K - x) + 1)
10**(K - x)*S1_1*log(10)/(10**(K - x) + 1) - 10**(K - x)*(10**(K - x)*S1_1 + S0_1)*log(10)/(10**(K - x) + 1)**2
[11]:
f2 = (S0_1 + S1_1 * x / K) / (1 + x / K)
print(sympy.diff(f2, S0_1))
print(sympy.diff(f2, S1_1))
print(sympy.diff(f2, K))
1/(1 + x/K)
x/(K*(1 + x/K))
-S1_1*x/(K**2*(1 + x/K)) + x*(S0_1 + S1_1*x/K)/(K**2*(1 + x/K)**2)
[12]:
def residual(pars, x, data):
S0 = pars["S0"]
S1 = pars["S1"]
K = pars["K"]
# model = (S0 + S1 * x / Kd) / (1 + x / Kd)
x = np.array(x)
y = np.array(data)
model = (S0 + S1 * 10 ** (K - x)) / (1 + 10 ** (K - x))
if data is None:
return model
return y - model
# Try Jacobian
def dfunc(pars, x, data=None):
S0_1 = pars["S0"]
S1_1 = pars["S1"]
K = pars["K"]
kx = np.array(10 ** (K - x))
return np.array(
[
-1 / (kx + 1),
-kx / (kx + 1),
-kx * np.log(10) * (S1_1 / (kx + 1) - (kx * S1_1 + S0_1) / (kx + 1) ** 2),
]
)
# kx * S1_1 * np.log(10) / (kx + 1) - kx * (kx * S1_1 + S0_1) * np.log(10) / (kx + 1)**2])
params = lmfit.Parameters()
params.add("S0", value=25000)
params.add("S1", value=50000, min=0.0)
params.add("K", value=7, min=2.0, max=12.0)
# out = lmfit.minimize(residual, params, args=(df.x,), kws={'data':df.y1})
# mini = lmfit.Minimizer(residual, params, fcn_args=(df.x, df.y2))
mini = lmfit.Minimizer(residual, params, fcn_args=(df.x,), fcn_kws={"data": df.y1})
# res= mini.minimize()
res = mini.leastsq(Dfun=dfunc, col_deriv=True, ftol=1e-8)
fit = residual(params, df.x, None)
print(lmfit.report_fit(res))
ci = lmfit.conf_interval(mini, res, sigmas=[1, 2, 3])
lmfit.printfuncs.report_ci(ci)
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 9
# data points = 7
# variables = 3
chi-square = 12308015.2
reduced chi-square = 3077003.79
Akaike info crit = 106.658958
Bayesian info crit = 106.496688
[[Variables]]
S0: 26638.8377 +/- 2455.91825 (9.22%) (init = 25000)
S1: 54043.3592 +/- 979.995977 (1.81%) (init = 50000)
K: 8.06961091 +/- 0.14940678 (1.85%) (init = 7)
[[Correlations]] (unreported correlations are < 0.100)
C(S0, K) = -0.7750
C(S1, K) = -0.4552
C(S0, S1) = +0.2046
None
99.73% 95.45% 68.27% _BEST_ 68.27% 95.45% 99.73%
S0:-85235.74104-8376.40372-2895.5618126638.83771+2558.77424+5999.31275+12360.60692
S1:-6192.81418-2734.30623-1098.2204254043.35921+1113.18257+2829.54298+6725.37841
K : -0.98139 -0.40197 -0.15949 8.06961 +0.16276 +0.42591 +1.50918
[13]:
print(lmfit.ci_report(ci, with_offset=False, ndigits=2))
99.73% 95.45% 68.27% _BEST_ 68.27% 95.45% 99.73%
S0:-58596.9018262.4323743.2826638.8429197.6132638.1538999.44
S1:47850.5551309.0552945.1454043.3655156.5456872.9060768.74
K : 7.09 7.67 7.91 8.07 8.23 8.50 9.58
1.4.1.1. emcee#
[14]:
res.params.add("__lnsigma", value=np.log(0.1), min=np.log(0.001), max=np.log(1e4))
resMC = lmfit.minimize(
residual, method="emcee", nan_policy="omit", params=res.params, args=(df.x, df.y1)
)
100%|██████████| 1000/1000 [00:11<00:00, 90.89it/s]
The chain is shorter than 50 times the integrated autocorrelation time for 4 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [36.01534895 31.14085481 31.73843752 49.51739801]
[15]:

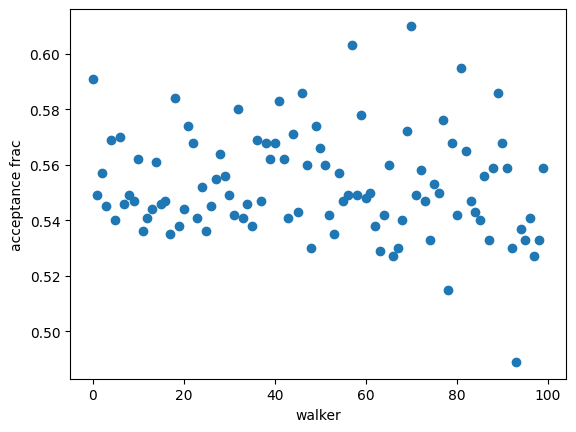

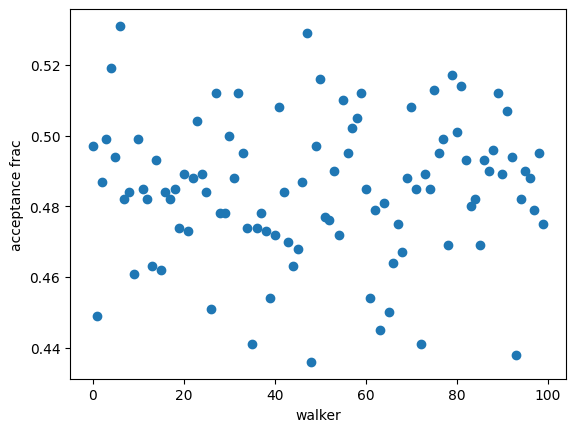

plt.plot(resMC.acceptance_fraction, "o")
plt.xlabel("walker")
plt.ylabel("acceptance frac")
[15]:
Text(0, 0.5, 'acceptance frac')

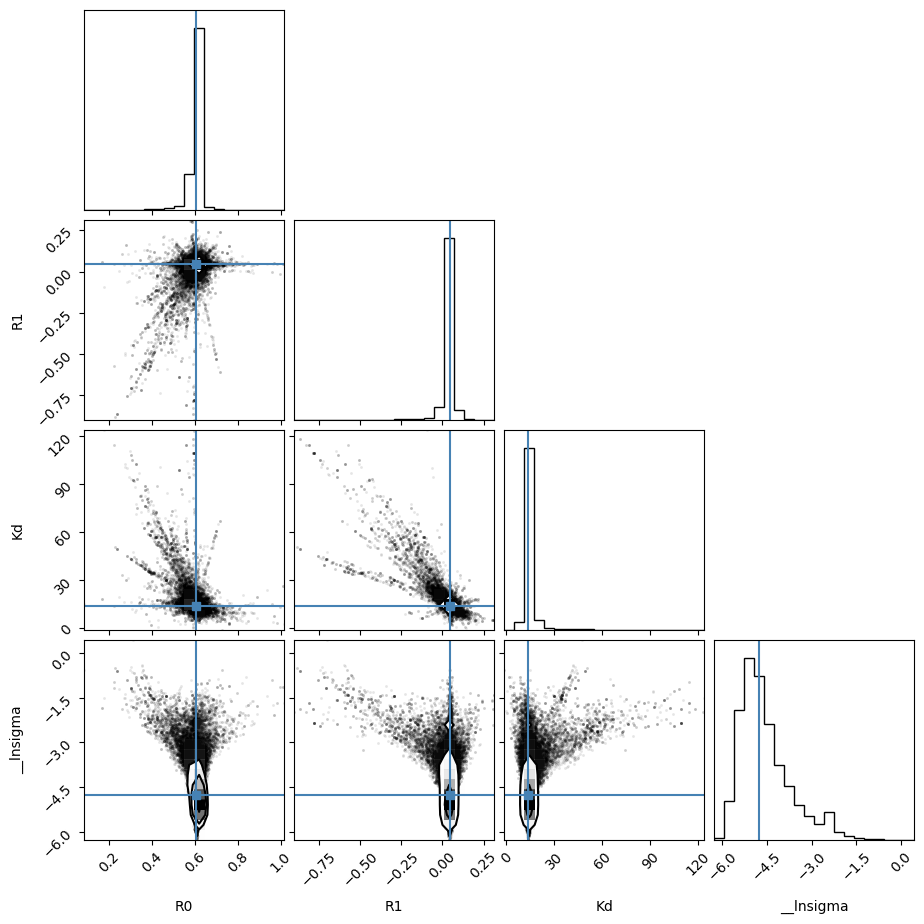

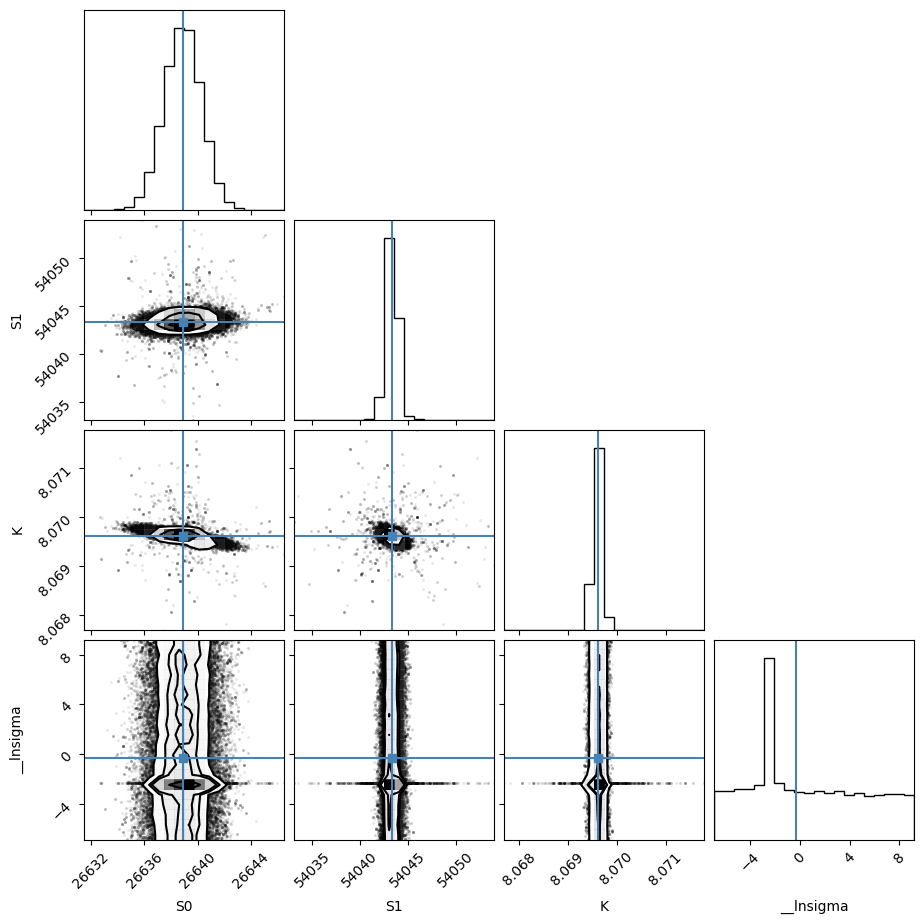

[16]:
import corner
tr = [v for v in resMC.params.valuesdict().values()]
emcee_plot = corner.corner(
resMC.flatchain,
labels=resMC.var_names,
truths=list(resMC.params.valuesdict().values()),
)
# truths=tr[:-1])
WARNING:root:Pandas support in corner is deprecated; use ArviZ directly
WARNING:root:Too few points to create valid contours
1.4.2. using lmfit with np.r_ trick#
[17]:
# %%timeit #62ms
def residual2(pars, x, data=None):
K = pars["K"]
S0_1 = pars["S0_1"]
S1_1 = pars["S1_1"]
S0_2 = pars["S0_2"]
S1_2 = pars["S1_2"]
model_0 = (S0_1 + S1_1 * 10 ** (K - x[0])) / (1 + 10 ** (K - x[0]))
model_1 = (S0_2 + S1_2 * 10 ** (K - x[1])) / (1 + 10 ** (K - x[1]))
if data is None:
return np.r_[model_0, model_1]
return np.r_[data[0] - model_0, data[1] - model_1]
params2 = lmfit.Parameters()
params2.add("K", value=7.0, min=2.0, max=12.0)
params2.add("S0_1", value=df.y1[0], min=0.0)
params2.add("S0_2", value=df.y2[0], min=0.0)
params2.add("S1_1", value=df.y1.iloc[-1], min=0.0)
params2.add("S1_2", value=df.y2.iloc[-1], min=0.0)
mini2 = lmfit.Minimizer(
residual2, params2, fcn_args=([df.x, df.x],), fcn_kws={"data": [df.y1, df.y2]}
)
res2 = mini2.minimize()
print(lmfit.fit_report(res2))
ci2, tr2 = lmfit.conf_interval(mini2, res2, sigmas=[0.68, 0.95], trace=True)
print(lmfit.ci_report(ci2, with_offset=False, ndigits=2))
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 37
# data points = 14
# variables = 5
chi-square = 12471473.3
reduced chi-square = 1385719.25
Akaike info crit = 201.798560
Bayesian info crit = 204.993846
[[Variables]]
K: 8.07255029 +/- 0.07600777 (0.94%) (init = 7)
S0_1: 26601.3458 +/- 1425.69913 (5.36%) (init = 29657)
S0_2: 25084.4189 +/- 1337.07982 (5.33%) (init = 22885)
S1_1: 54034.5806 +/- 627.642479 (1.16%) (init = 51205)
S1_2: 1473.57871 +/- 616.944649 (41.87%) (init = 1358)
[[Correlations]] (unreported correlations are < 0.100)
C(K, S0_1) = -0.6816
C(K, S0_2) = +0.6255
C(S0_1, S0_2) = -0.4264
C(K, S1_1) = -0.3611
C(K, S1_2) = +0.3161
C(S0_2, S1_1) = -0.2259
C(S0_1, S1_2) = -0.2155
C(S1_1, S1_2) = -0.1141
95.00% 68.00% _BEST_ 68.00% 95.00%
K : 7.91 7.99 8.07 8.15 8.24
S0_1:23210.9025078.6226601.3528045.4929623.53
S0_2:22232.9723723.9425084.4226514.8828263.75
S1_1:52629.0453378.2454034.5854695.2655460.17
S1_2: 72.04 824.011473.582118.982855.89
[18]:

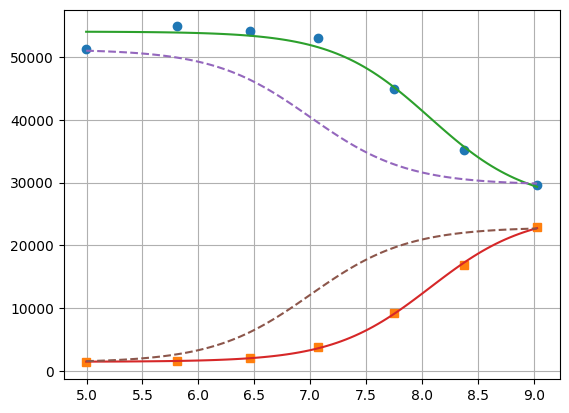

xfit = np.linspace(df.x.min(), df.x.max(), 100)
yfit0 = residual2(params2, [xfit, xfit])
yfit0 = yfit0.reshape(2, 100)
yfit = residual2(res2.params, [xfit, xfit])
yfit = yfit.reshape(2, 100)
plt.plot(df.x, df.y1, "o", df.x, df.y2, "s")
plt.plot(xfit, yfit[0], "-", xfit, yfit[1], "-")
plt.plot(xfit, yfit0[0], "--", xfit, yfit0[1], "--")
plt.grid(True)
1.4.3. lmfit constraints aiming for generality#
I believe a name convention would be more robust than relying on OrderedDict Params object.
[19]:
"S0_1".split("_")[0]
[19]:
'S0'
[20]:
def exception_fcn_handler(func):
def inner_function(*args, **kwargs):
try:
return func(*args, **kwargs)
except TypeError:
print(
f"{func.__name__} only takes (1D) vector as argument besides lmfit.Parameters."
)
return inner_function
@exception_fcn_handler
def titration_pH(params, pH):
p = {k.split("_")[0]: v for k, v in params.items()}
return (p["S0"] + p["S1"] * 10 ** (p["K"] - pH)) / (1 + 10 ** (p["K"] - pH))
def residues(params, x, y, fcn):
return y - fcn(params, x)
p1 = lmfit.Parameters()
p2 = lmfit.Parameters()
p1.add("K_1", value=7.0, min=2.0, max=12.0)
p2.add("K_2", value=7.0, min=2.0, max=12.0)
p1.add("S0_1", value=df.y1.iloc[0], min=0.0)
p2.add("S0_2", value=df.y2.iloc[0], min=0.0)
p1.add("S1_1", value=df.y1.iloc[-1], min=0.0)
p2.add("S1_2", value=df.y2.iloc[-1])
print(
residues(p1, np.array(df.x), [1.97, 1.8, 1.7, 0.1, 0.1, 0.16, 0.01], titration_pH)
)
def gobjective(params, xl, yl, fcnl):
nset = len(xl)
res = []
for i in range(nset):
pi = {k: v for k, v in params.valuesdict().items() if k[-1] == f"{i+1}"}
res = np.r_[res, residues(pi, xl[i], yl[i], fcnl[i])]
# res = np.r_[res, yl[i] - fcnl[i](parsl[i], x[i])]
return res
print(gobjective(p1 + p2, [df.x, df.x], [df.y1, df.y2], [titration_pH, titration_pH]))
[-29854.26823732 -30530.32007939 -32908.60749879 -39523.42660007
-46381.47878947 -49888.5091843 -50993.25866394]
[ -199.23823732 4667.87992061 11990.69250121 13539.47339993
7820.42121053 4962.3308157 211.73133606 199.04406603
-5080.73278499 -10416.86307191 -9270.08900503 -4075.72045662
-1131.04796128 -211.52498939]
Here single.
[21]:
mini = lmfit.Minimizer(
residues,
p1,
fcn_args=(
df.x,
df.y1,
titration_pH,
),
)
res = mini.minimize()
fit = titration_pH(res.params, df.x)
print(lmfit.report_fit(res))

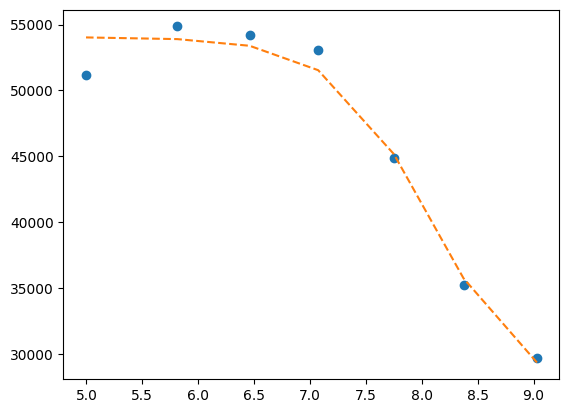

plt.plot(df.x, df.y1, "o", df.x, fit, "--")
ci = lmfit.conf_interval(mini, res, sigmas=[1, 2])
lmfit.printfuncs.report_ci(ci)
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 25
# data points = 7
# variables = 3
chi-square = 12308015.2
reduced chi-square = 3077003.79
Akaike info crit = 106.658958
Bayesian info crit = 106.496688
[[Variables]]
K_1: 8.06961042 +/- 0.14940740 (1.85%) (init = 7)
S0_1: 26638.8440 +/- 2455.92762 (9.22%) (init = 29657)
S1_1: 54043.3607 +/- 979.995185 (1.81%) (init = 51205)
[[Correlations]] (unreported correlations are < 0.100)
C(K_1, S0_1) = -0.7750
C(K_1, S1_1) = -0.4552
C(S0_1, S1_1) = +0.2046
None
95.45% 68.27% _BEST_ 68.27% 95.45%
K_1 : -0.40197 -0.15948 8.06961 +0.16276 +0.42592
S0_1:-8376.39586-2895.5681226638.84401+2558.76794+5999.32366
S1_1:-2734.30835-1098.2218354043.36069+1113.18102+2829.55353
Now global.
[22]:
pg = p1 + p2
pg["K_2"].expr = "K_1"
gmini = lmfit.Minimizer(
gobjective,
pg,
fcn_args=([df.x[:], df.x], [df.y1[:], df.y2], [titration_pH, titration_pH]),
)
gres = gmini.minimize()
print(lmfit.fit_report(gres))
pp1 = {k: v for k, v in gres.params.valuesdict().items() if k.split("_")[1] == f"{1}"}
pp2 = {k: v for k, v in gres.params.valuesdict().items() if k.split("_")[1] == f"{2}"}

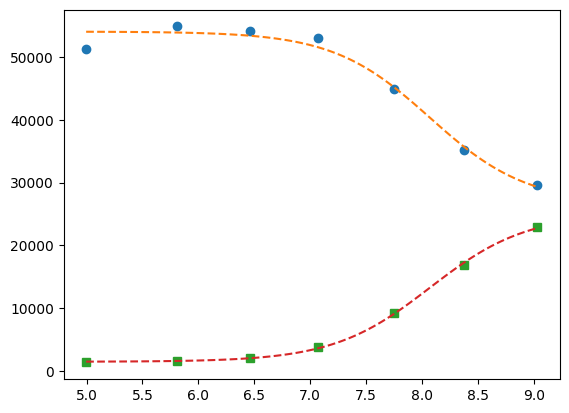

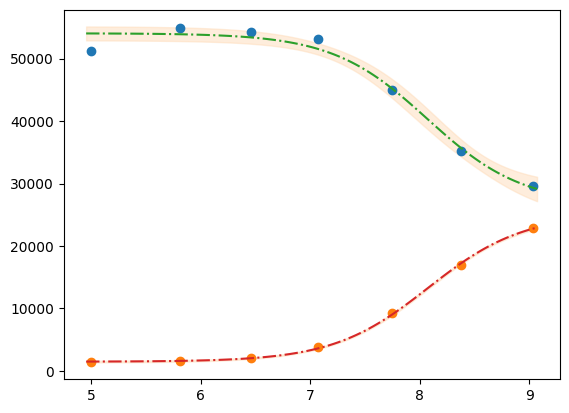

xfit = np.linspace(df.x.min(), df.x.max(), 100)
yfit1 = titration_pH(pp1, xfit)
yfit2 = titration_pH(pp2, xfit)
plt.plot(df.x, df.y1, "o", xfit, yfit1, "--")
plt.plot(df.x, df.y2, "s", xfit, yfit2, "--")
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 37
# data points = 14
# variables = 5
chi-square = 12471473.3
reduced chi-square = 1385719.25
Akaike info crit = 201.798560
Bayesian info crit = 204.993846
[[Variables]]
K_1: 8.07255029 +/- 0.07600777 (0.94%) (init = 7)
S0_1: 26601.3458 +/- 1425.69913 (5.36%) (init = 29657)
S1_1: 54034.5806 +/- 627.642480 (1.16%) (init = 51205)
K_2: 8.07255029 +/- 0.07600777 (0.94%) == 'K_1'
S0_2: 25084.4189 +/- 1337.07982 (5.33%) (init = 22885)
S1_2: 1473.57871 +/- 616.944649 (41.87%) (init = 1358)
[[Correlations]] (unreported correlations are < 0.100)
C(K_1, S0_1) = -0.6816
C(K_1, S0_2) = +0.6255
C(S0_1, S0_2) = -0.4264
C(K_1, S1_1) = -0.3611
C(K_1, S1_2) = +0.3161
C(S1_1, S0_2) = -0.2259
C(S0_1, S1_2) = -0.2155
C(S1_1, S1_2) = -0.1141
[22]:
[<matplotlib.lines.Line2D at 0x7f52802ebbd0>,
<matplotlib.lines.Line2D at 0x7f528031ed90>]
[23]:
ci = lmfit.conf_interval(gmini, gres)
print(lmfit.ci_report(ci, with_offset=False, ndigits=2))
99.73% 95.45% 68.27% _BEST_ 68.27% 95.45% 99.73%
K_1 : 7.77 7.90 7.99 8.07 8.15 8.25 8.38
S0_1:20066.1223118.2625069.3726601.3528053.8229696.8331876.24
S1_1:51504.2152593.4753374.3654034.5854699.1855496.7856630.81
S0_2:20096.2422163.6223716.0825084.4226523.5528350.2131192.55
S1_2:-1078.82 36.05 820.171473.582122.782890.883962.77
To plot ci for the 5 parameters.
[24]:

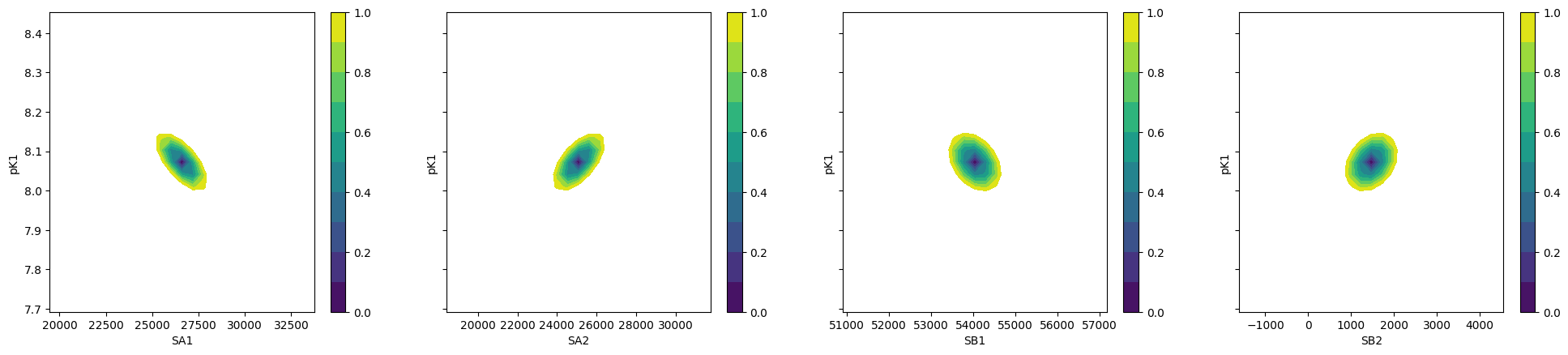

fig, axes = plt.subplots(1, 4, figsize=(24.2, 4.8), sharey=True)
cx, cy, grid = lmfit.conf_interval2d(gmini, gres, "S0_1", "K_1", 25, 25)
ctp = axes[0].contourf(cx, cy, grid, np.linspace(0, 1, 11))
fig.colorbar(ctp, ax=axes[0])
axes[0].set_xlabel("SA1")
axes[0].set_ylabel("pK1")
cx, cy, grid = lmfit.conf_interval2d(gmini, gres, "S0_2", "K_1", 25, 25)
ctp = axes[1].contourf(cx, cy, grid, np.linspace(0, 1, 11))
fig.colorbar(ctp, ax=axes[1])
axes[1].set_xlabel("SA2")
axes[1].set_ylabel("pK1")
cx, cy, grid = lmfit.conf_interval2d(gmini, gres, "S1_1", "K_1", 25, 25)
ctp = axes[2].contourf(cx, cy, grid, np.linspace(0, 1, 11))
fig.colorbar(ctp, ax=axes[2])
axes[2].set_xlabel("SB1")
axes[2].set_ylabel("pK1")
cx, cy, grid = lmfit.conf_interval2d(gmini, gres, "S1_2", "K_1", 25, 25)
ctp = axes[3].contourf(cx, cy, grid, np.linspace(0, 1, 11))
fig.colorbar(ctp, ax=axes[3])
axes[3].set_xlabel("SB2")
axes[3].set_ylabel("pK1")
[24]:
Text(0, 0.5, 'pK1')
[25]:
plt.plot(np.r_[df.x, df.x], gres.residual, "o")
[25]:
[<matplotlib.lines.Line2D at 0x7f527bfdf950>]
1.4.3.1. emcee#
[26]:
gmini.params.add("__lnsigma", value=np.log(0.1), min=np.log(0.001), max=np.log(20000))
gresMC = lmfit.minimize(
gobjective,
method="emcee",
nan_policy="omit",
params=gmini.params,
args=([df.x, df.x], [df.y1, df.y2], [titration_pH, titration_pH]),
)
100%|██████████| 1000/1000 [02:48<00:00, 5.95it/s]
The chain is shorter than 50 times the integrated autocorrelation time for 6 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [36.71359231 44.74326834 40.73146614 39.35657715 43.99983353 67.46082702]
This next block comes from: https://lmfit.github.io/lmfit-py/examples/example_emcee_Model_interface.html?highlight=emcee
[27]:
plt.plot(gresMC.acceptance_fraction, "o")
plt.xlabel("walker")
plt.ylabel("acceptance frac")
[27]:
Text(0, 0.5, 'acceptance frac')
[28]:

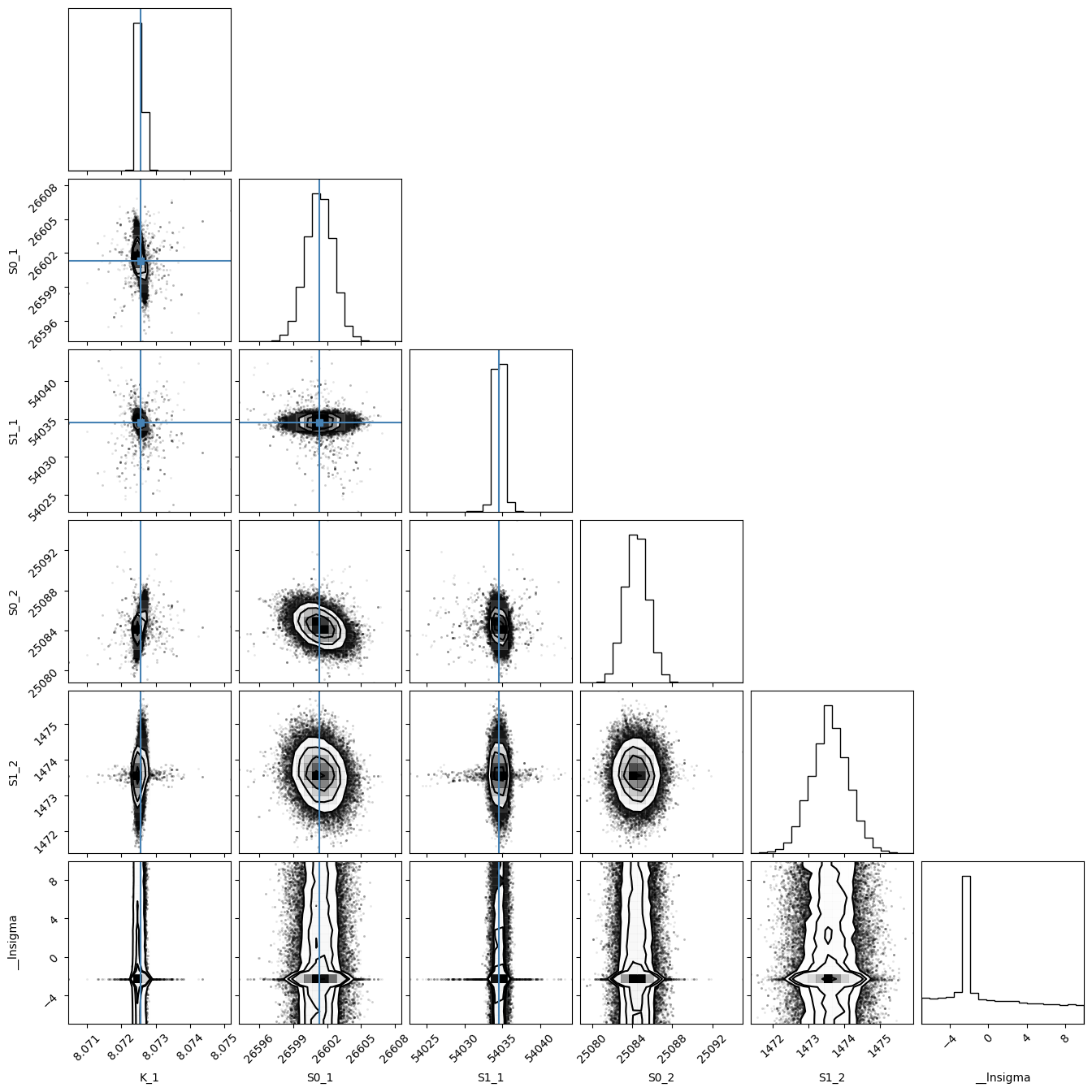

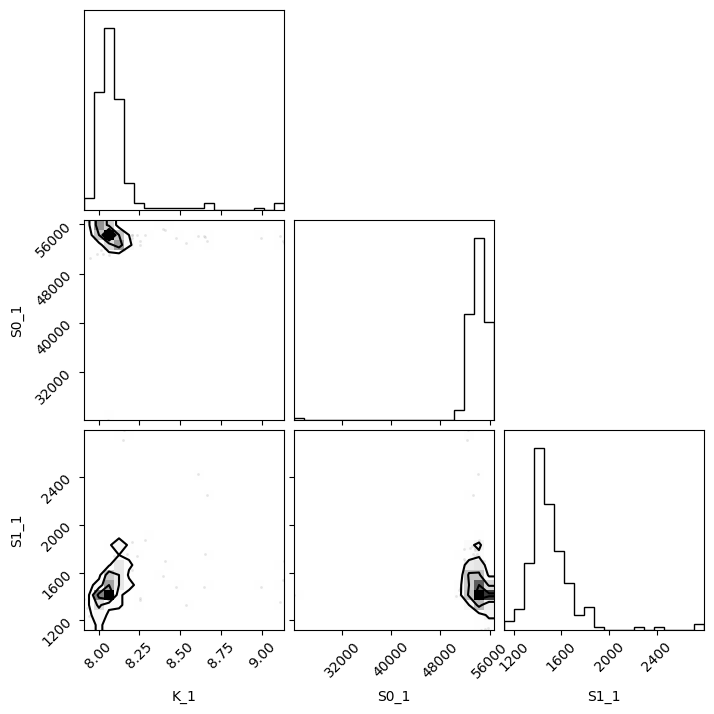

import corner
tr = [v for v in gresMC.params.valuesdict().values()]
emcee_plot = corner.corner(gresMC.flatchain, labels=gresMC.var_names, truths=tr[:-1])
WARNING:root:Pandas support in corner is deprecated; use ArviZ directly
WARNING:root:Too few points to create valid contours
[29]:
lmfit.report_fit(gresMC.params)
[[Variables]]
K_1: 8.07254988 +/- 6.3733e-05 (0.00%) (init = 8.07255)
S0_1: 26601.3509 +/- 1.20402118 (0.00%) (init = 26601.35)
S1_1: 54034.5743 +/- 0.56681339 (0.00%) (init = 54034.58)
K_2: 8.07254988 == 'K_1'
S0_2: 25084.4236 +/- 1.14204011 (0.00%) (init = 25084.42)
S1_2: 1473.59159 +/- 0.51596582 (0.04%) (init = 1473.579)
__lnsigma: -1.63343046 +/- 4.83356099 (295.91%) (init = -2.302585)
[[Correlations]] (unreported correlations are < 0.100)
C(K_1, S0_1) = -0.4722
C(K_1, S0_2) = +0.4618
C(S0_1, S0_2) = -0.3722
C(K_1, S1_1) = -0.2414
C(K_1, S1_2) = +0.2090
C(S0_1, S1_2) = -0.1930
C(S1_1, S0_2) = -0.1591
[30]:
highest_prob = np.argmax(gresMC.lnprob)
hp_loc = np.unravel_index(highest_prob, gresMC.lnprob.shape)
mle_soln = gresMC.chain[hp_loc]
for i, par in enumerate(pg):
pg[par].value = mle_soln[i]
header = "\nMaximum Likelihood Estimation from emcee"
line = "-------------------------------------------------"
format_string = "{:<5s} {:>11s} {:>11s} {:>11s}"
print(f"{header}\n{line}")
print(format_string.format("Parameter", "MLE Value", "Median Value", "Uncertainty"))
for name, param in pg.items():
mle_value = f"{param.value:.5f}"
median_value = f"{gresMC.params[name].value:.5f}"
uncertainty = (
"None"
if gresMC.params[name].stderr is None
else f"{gresMC.params[name].stderr:.5f}"
)
print(format_string.format(name, mle_value, median_value, uncertainty))
Maximum Likelihood Estimation from emcee
-------------------------------------------------
Parameter MLE Value Median Value Uncertainty
K_1 8.07255 8.07255 0.00006
S0_1 26601.18265 26601.35094 1.20402
S1_1 54034.56651 54034.57435 0.56681
K_2 8.07255 8.07255 None
S0_2 1473.64690 25084.42361 1.14204
S1_2 -5.59259 1473.59159 0.51597
[31]:
print("\nError estimates from emcee:")
print("------------------------------------------------------")
print("Parameter -2sigma -1sigma median +1sigma +2sigma")
format_string = " {:5s} {:8.4f} {:8.4f} {:8.4f} {:8.4f} {:8.4f}"
for name in pg.keys():
if name in gresMC.flatchain:
quantiles = np.percentile(
gresMC.flatchain[name], [2.275, 15.865, 50, 84.135, 97.275]
)
median = quantiles[2]
errors = quantiles - median
print(format_string.format(name, *errors))
else:
print(f"Key '{name}' not found in gresMC.flatchain.")
Error estimates from emcee:
------------------------------------------------------
Parameter -2sigma -1sigma median +1sigma +2sigma
K_1 -0.0001 -0.0001 0.0000 0.0001 0.0001
S0_1 -2.4692 -1.2159 0.0000 1.1926 2.2931
S1_1 -1.1518 -0.5598 0.0000 0.5741 1.1041
Key 'K_2' not found in gresMC.flatchain.
S0_2 -2.2575 -1.1402 0.0000 1.1445 2.2271
S1_2 -1.0474 -0.5197 0.0000 0.5125 1.0101
[32]:
emcee_params = gmini.params.copy()
emcee_params.add("__lnsigma", value=np.log(0.1), min=np.log(0.001), max=np.log(2.0))
mi = lmfit.Minimizer(
gobjective,
emcee_params,
fcn_args=([df.x, df.x], [df.y1, df.y2], [titration_pH, titration_pH]),
)
res_emcee = mi.minimize(method="emcee", steps=500, burn=50, thin=20, is_weighted=False)
lmfit.report_fit(res_emcee)
100%|██████████| 500/500 [01:28<00:00, 5.64it/s]
The chain is shorter than 50 times the integrated autocorrelation time for 6 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 10;
tau: [41.43608937 38.26073716 41.64620364 41.45277181 43.73839237 55.06682383]
[[Fit Statistics]]
# fitting method = emcee
# function evals = 50000
# data points = 14
# variables = 6
chi-square = 3119313.76
reduced chi-square = 389914.221
Akaike info crit = 184.396928
Bayesian info crit = 188.231272
[[Variables]]
K_1: 8.07377845 +/- 0.08659606 (1.07%) (init = 8.07255)
S0_1: 26594.2765 +/- 2344.99613 (8.82%) (init = 26601.35)
S1_1: 54026.3984 +/- 563.263532 (1.04%) (init = 54034.58)
K_2: 8.07377845 == 'K_1'
S0_2: 25089.9684 +/- 948.437394 (3.78%) (init = 25084.42)
S1_2: 1493.60468 +/- 242.550345 (16.24%) (init = 1473.579)
__lnsigma: 0.69298263 +/- 0.04693269 (6.77%) (init = -2.302585)
[[Correlations]] (unreported correlations are < 0.100)
C(K_1, S0_1) = -0.9674
C(S0_1, S1_2) = -0.9653
C(K_1, S1_1) = -0.9510
C(S0_1, S1_1) = +0.9506
C(S1_1, S1_2) = -0.9274
C(K_1, S1_2) = +0.9264
C(K_1, S0_2) = +0.8727
C(S1_1, S0_2) = -0.8094
C(S0_1, S0_2) = -0.7885
C(S0_2, S1_2) = +0.7313
C(S1_1, __lnsigma) = +0.2094
C(S0_1, __lnsigma) = +0.2085
C(S1_2, __lnsigma) = -0.1999
C(K_1, __lnsigma) = -0.1780
C(S0_2, __lnsigma) = -0.1068
1.4.4. bootstrap con pandas#
[33]:
for i in range(100):
tdf = pd.DataFrame([(j, i) for i in range(7) for j in range(2)]).sample(
14, replace=True, ignore_index=False
)
df1 = df[["x", "y1"]].iloc[np.array(tdf[tdf[0] == 0][1])]
df2 = df[["x", "y2"]].iloc[np.array(tdf[tdf[0] == 1][1])]
[34]:
def idx_sample(npoints):
tidx = []
for i in range(npoints):
tidx.append((np.random.randint(2), np.random.randint(7)))
idx1 = []
idx2 = []
for t in tidx:
if t[0] == 0:
idx1.append(t[1])
elif t[0] == 1:
idx2.append(t[1])
else:
raise Exception("Must never occur")
return idx1, idx2
for i in range(100):
idx1, idx2 = idx_sample(14)
df1 = (
df[["x", "y1"]]
.iloc[idx1]
.sort_values(by="x", ascending=False)
.reset_index(drop=True)
)
df2 = (
df[["x", "y2"]]
.iloc[idx2]
.sort_values(by="x", ascending=False)
.reset_index(drop=True)
)
[35]:
n_points = len(df)
nboot = 199
np.random.seed(5)
best = lmfit.minimize(
gobjective,
pg,
args=([df.x[1:], df.x], [df.y1[1:], df.y2], [titration_pH, titration_pH]),
)
nb = {k: [] for k in best.params.keys()}
for i in range(nboot):
idx1, idx2 = idx_sample(13)
df1 = (
df[["x", "y1"]]
.iloc[idx1]
.sort_values(by="x", ascending=False)
.reset_index(drop=True)
)
df2 = (
df[["x", "y2"]]
.iloc[idx2]
.sort_values(by="x", ascending=False)
.reset_index(drop=True)
)
# boot_idxs = np.random.randint(0, n_points, n_points)
# df2 = df.iloc[boot_idxs]
# df2=df2.sort_values(by="x", ascending=False).reset_index(drop=True)
# # df2.reset_index(drop=True, inplace=True)
# boot_idxs = np.random.randint(0, n_points, n_points)
# df3 = df.iloc[boot_idxs]
# # df3.reset_index(drop=True, inplace=True)
# df3=df3.sort_values(by="x", ascending=False).reset_index(drop=True)
try:
out = lmfit.minimize(
gobjective,
best.params,
args=([df1.x, df2.x], [df1.y1, df2.y2], [titration_pH, titration_pH]),
calc_covar=False,
method="leastsq",
nan_policy="omit",
scale_covar=False,
)
for k, v in out.params.items():
nb[k].append(v.value)
except:
print(df1)
print(df2)
# print(nb)
[36]:
np.quantile(nb["K_1"], [0.025, 0.5, 0.975])
[36]:
array([7.97738171, 8.07819767, 8.64995708])
[37]:

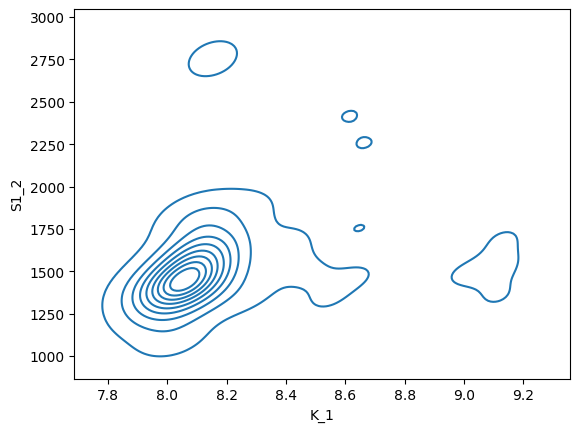

sb.kdeplot(data=nb, x="K_1", y="S1_2")
[37]:
<Axes: xlabel='K_1', ylabel='S1_2'>
[38]:
# nb.drop("K_2", axis=1, inplace=True)

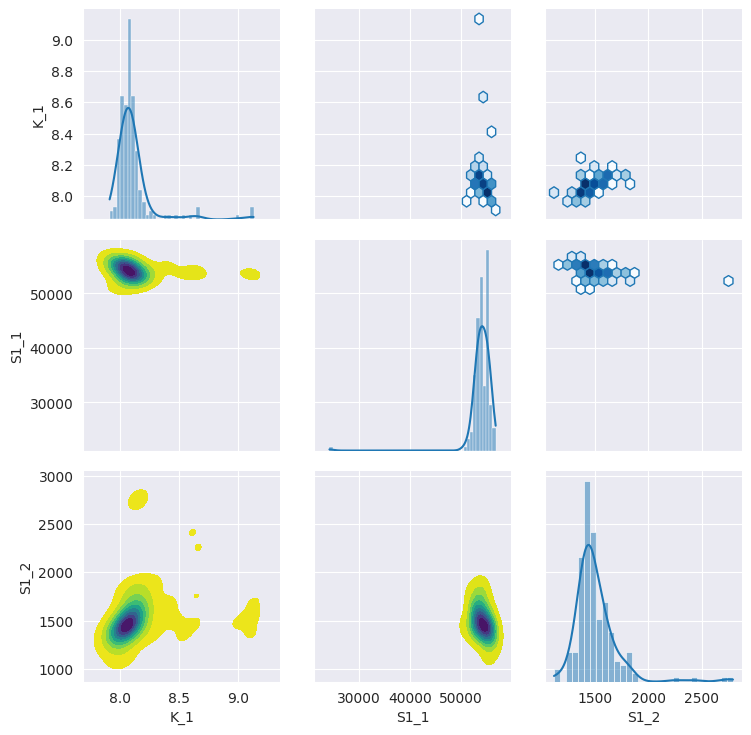

with sb.axes_style("darkgrid"):
g = sb.PairGrid(pd.DataFrame(nb), diag_sharey=False, vars=["K_1", "S1_1", "S1_2"])
g.map_upper(plt.hexbin, bins="log", gridsize=20, cmap="Blues", mincnt=2)
g.map_lower(sb.kdeplot, cmap="viridis_r", fill=True)
g.map_diag(sb.histplot, kde=True)
[39]:

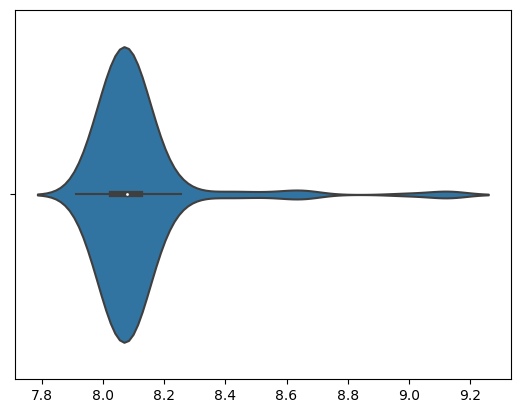

sb.violinplot(data=nb, x="K_1", split=True)
[39]:
<Axes: >
[40]:

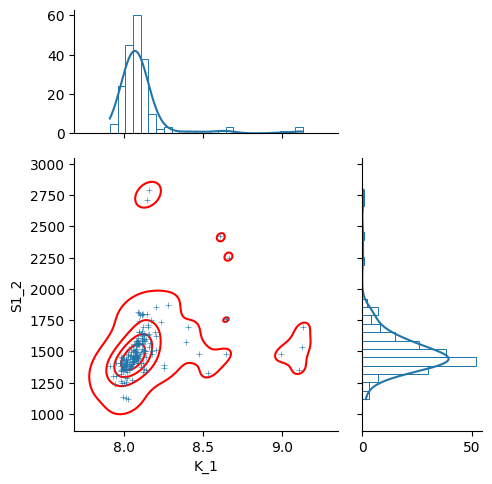

g = sb.jointplot(
y="S1_2",
x="K_1",
data=nb,
marker="+",
s=25,
marginal_kws=dict(bins=25, fill=False, kde=True),
color="#2075AA",
marginal_ticks=True,
height=5,
ratio=2,
)
g.plot_joint(sb.kdeplot, color="r", zorder=0, levels=5)
[40]:
<seaborn.axisgrid.JointGrid at 0x7f5281c95b90>
[41]:
g = sb.JointGrid(data=nb, x="K_1", y="S1_2")

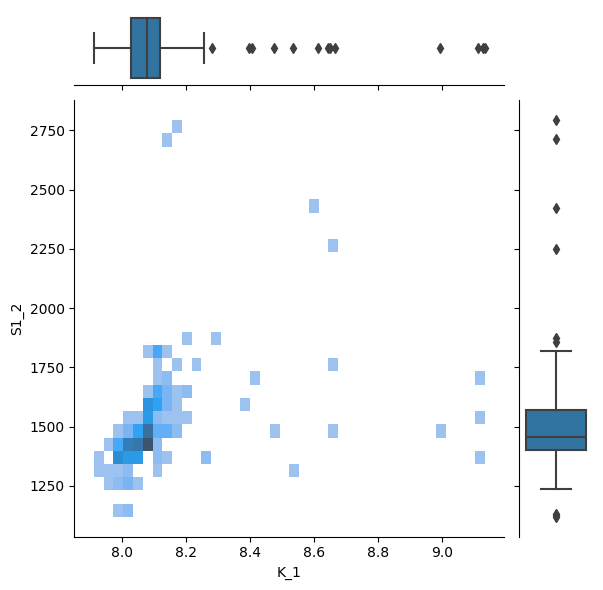

g.plot_joint(sb.histplot)
g.plot_marginals(sb.boxplot)
[41]:
<seaborn.axisgrid.JointGrid at 0x7f5282003190>
[42]:

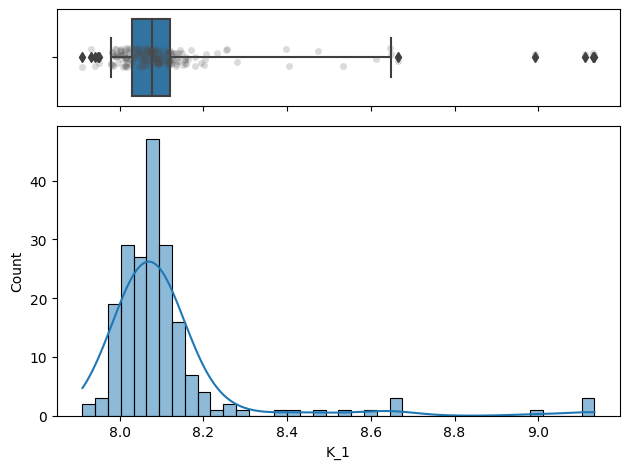

f, (ax_box, ax_hist) = plt.subplots(
2, sharex=True, gridspec_kw={"height_ratios": (0.25, 0.75)}
)
sb.histplot(data=nb, x="K_1", kde=True, ax=ax_hist)
sb.boxplot(x="K_1", data=nb, whis=[2.5, 97.5], ax=ax_box)
sb.stripplot(x="K_1", data=nb, color=".3", alpha=0.2, ax=ax_box)
ax_box.set(xlabel="")
f.tight_layout()
# ax = sb.violinplot(x="K_1", data=nb, inner=None, color="r")
[43]:

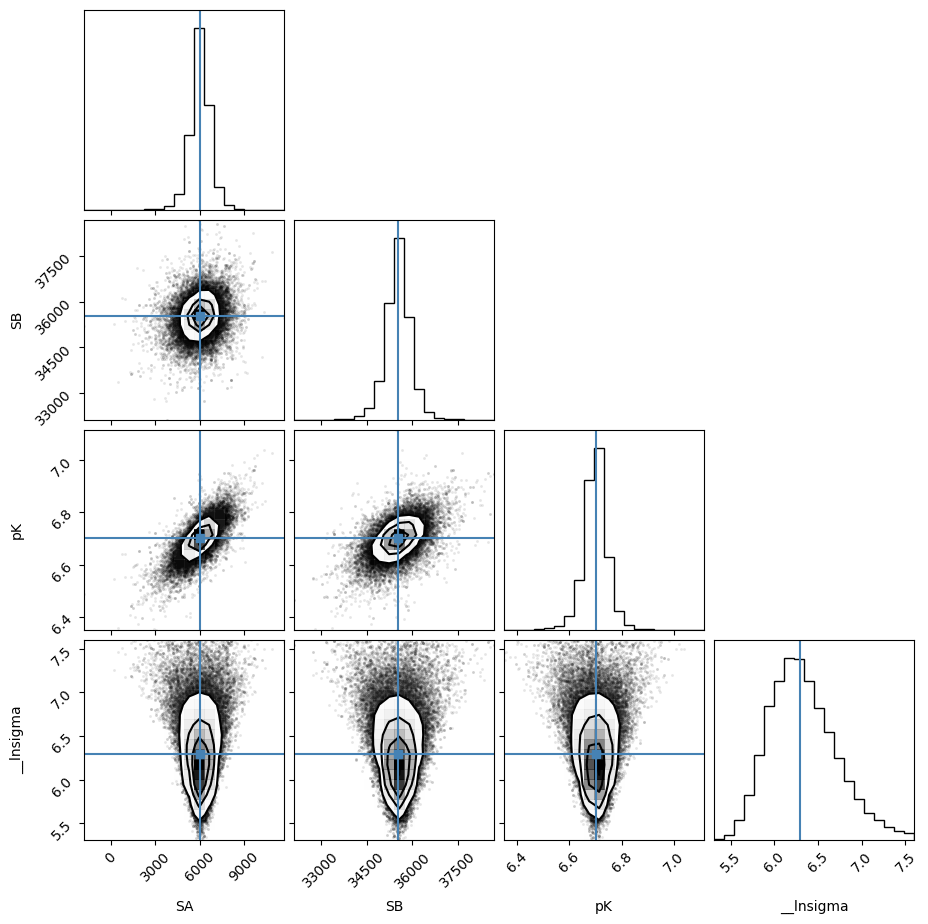

import corner
g = corner.corner(pd.DataFrame(nb)[["K_1", "S1_1", "S1_2"]], labels=list(nb.keys()))
WARNING:root:Pandas support in corner is deprecated; use ArviZ directly
1.4.5. lmfit.Model#
It took 9 vs 5 ms. It is not possible to do global fitting. In the documentation it is stressed the need to convert the output of the residue to be 1D vectors.
[44]:
mod = lmfit.models.ExpressionModel("(SB + SA * 10**(pK-x)) / (1 + 10**(pK-x))")
result = mod.fit(np.array(df.y1), x=np.array(df.x), pK=7, SB=7e3, SA=10000)
print(result.fit_report())
[[Model]]
Model(_eval)
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 44
# data points = 7
# variables = 3
chi-square = 12308015.2
reduced chi-square = 3077003.79
Akaike info crit = 106.658958
Bayesian info crit = 106.496688
R-squared = 0.97973543
[[Variables]]
SB: 26638.9314 +/- 2456.05773 (9.22%) (init = 7000)
SA: 54043.3812 +/- 979.984193 (1.81%) (init = 10000)
pK: 8.06960356 +/- 0.14941163 (1.85%) (init = 7)
[[Correlations]] (unreported correlations are < 0.100)
C(SB, pK) = -0.7750
C(SA, pK) = -0.4552
C(SB, SA) = +0.2046
[45]:

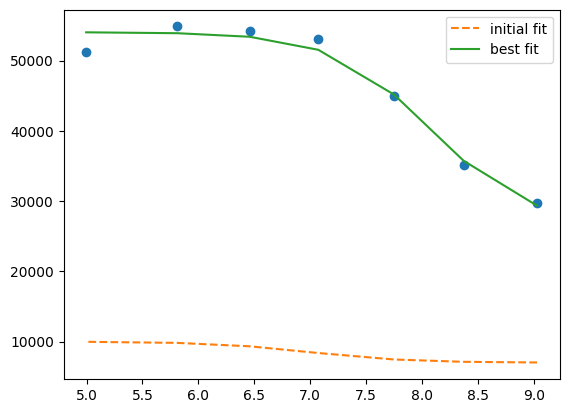

plt.plot(df.x, df.y1, "o")
plt.plot(df.x, result.init_fit, "--", label="initial fit")
plt.plot(df.x, result.best_fit, "-", label="best fit")
plt.legend()
[45]:
<matplotlib.legend.Legend at 0x7f527a1d2ad0>
[46]:
print(result.ci_report())
99.73% 95.45% 68.27% _BEST_ 68.27% 95.45% 99.73%
SB:-85235.83517-8376.49744-2895.6555126638.93141+2558.68054+5999.21905+12360.51318
SA:-6192.83614-2734.32819-1098.2423854043.38116+1113.16062+2829.52103+6725.35644
pK: -0.98138 -0.40196 -0.15948 8.06960 +0.16277 +0.42592 +1.50919
which is faster but still I failed to find the way to global fitting.
[47]:
def tit_pH(x, S0, S1, K):
return (S0 + S1 * 10 ** (K - x)) / (1 + 10 ** (K - x))
tit_model1 = lmfit.Model(tit_pH, prefix="ds1_")
tit_model2 = lmfit.Model(tit_pH, prefix="ds2_")
print(f"parameter names: {tit_model1.param_names}")
print(f"parameter names: {tit_model2.param_names}")
print(f"independent variables: {tit_model1.independent_vars}")
print(f"independent variables: {tit_model2.independent_vars}")
tit_model1.set_param_hint("K", value=7.0, min=2.0, max=12.0)
tit_model1.set_param_hint("S0", value=df.y1[0], min=0.0)
tit_model1.set_param_hint("S1", value=df.y1.iloc[-1], min=0.0)
tit_model2.set_param_hint("K", value=7.0, min=2.0, max=12.0)
tit_model2.set_param_hint("S0", value=df.y1[0], min=0.0)
tit_model2.set_param_hint("S1", value=df.y1.iloc[-1], min=0.0)
pars1 = tit_model1.make_params()
pars2 = tit_model2.make_params()
# gmodel = tit_model1 + tit_model2
# result = gmodel.fit(df.y1 + df.y2, pars, x=df.x)
res1 = tit_model1.fit(df.y1, pars1, x=df.x)
res2 = tit_model2.fit(df.y2, pars2, x=df.x)
print(res1.fit_report())
print(res2.fit_report())
parameter names: ['ds1_S0', 'ds1_S1', 'ds1_K']
parameter names: ['ds2_S0', 'ds2_S1', 'ds2_K']
independent variables: ['x']
independent variables: ['x']
[[Model]]
Model(tit_pH, prefix='ds1_')
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 25
# data points = 7
# variables = 3
chi-square = 12308015.2
reduced chi-square = 3077003.79
Akaike info crit = 106.658958
Bayesian info crit = 106.496688
R-squared = 0.97973543
[[Variables]]
ds1_S0: 26638.8440 +/- 2455.92762 (9.22%) (init = 29657)
ds1_S1: 54043.3607 +/- 979.995185 (1.81%) (init = 51205)
ds1_K: 8.06961042 +/- 0.14940740 (1.85%) (init = 7)
[[Correlations]] (unreported correlations are < 0.100)
C(ds1_S0, ds1_K) = -0.7750
C(ds1_S1, ds1_K) = -0.4552
C(ds1_S0, ds1_S1) = +0.2046
[[Model]]
Model(tit_pH, prefix='ds2_')
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 33
# data points = 7
# variables = 3
chi-square = 159980.530
reduced chi-square = 39995.1326
Akaike info crit = 76.2582808
Bayesian info crit = 76.0960112
R-squared = 0.99963719
[[Variables]]
ds2_S0: 25135.9942 +/- 282.133911 (1.12%) (init = 29657)
ds2_S1: 1485.53168 +/- 111.549888 (7.51%) (init = 51205)
ds2_K: 8.07721983 +/- 0.01980096 (0.25%) (init = 7)
[[Correlations]] (unreported correlations are < 0.100)
C(ds2_S0, ds2_K) = +0.7768
C(ds2_S1, ds2_K) = +0.4545
C(ds2_S0, ds2_S1) = +0.2051
[48]:
xfit_delta = (df.x.max() - df.x.min()) / 100
xfit = np.arange(df.x.min() - xfit_delta, df.x.max() + xfit_delta, xfit_delta)
dely1 = res1.eval_uncertainty(x=xfit) * 1
dely2 = res2.eval_uncertainty(x=xfit) * 1
best_fit1 = res1.eval(x=xfit)
best_fit2 = res2.eval(x=xfit)

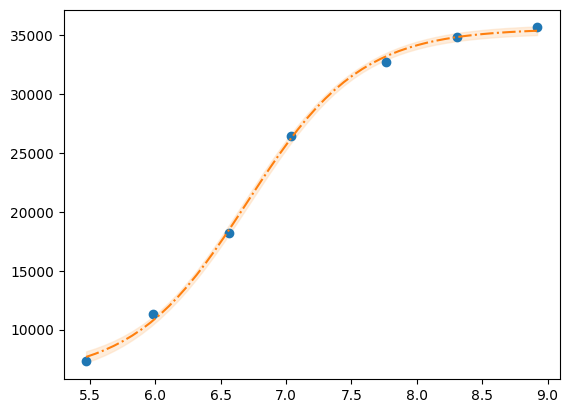

plt.plot(df.x, df.y1, "o")
plt.plot(df.x, df.y2, "o")
plt.plot(xfit, best_fit1, "-.")
plt.plot(xfit, best_fit2, "-.")
plt.fill_between(xfit, best_fit1 - dely1, best_fit1 + dely1, color="#FEDCBA", alpha=0.5)
plt.fill_between(xfit, best_fit2 - dely2, best_fit2 + dely2, color="#FEDCBA", alpha=0.5)
[48]:
<matplotlib.collections.PolyCollection at 0x7f527a0fc590>
Please mind the difference in the uncertainty between the 2 label blocks.
[49]:
def tit_pH2(x, S0_1, S0_2, S1_1, S1_2, K):
y1 = (S0_1 + S1_1 * 10 ** (K - x)) / (1 + 10 ** (K - x))
y2 = (S0_2 + S1_2 * 10 ** (K - x)) / (1 + 10 ** (K - x))
# return y1, y2
return np.r_[y1, y2]
tit_model = lmfit.Model(tit_pH2)
tit_model.set_param_hint("K", value=7.0, min=2.0, max=12.0)
tit_model.set_param_hint("S0_1", value=df.y1[0], min=0.0)
tit_model.set_param_hint("S0_2", value=df.y2[0], min=0.0)
tit_model.set_param_hint("S1_1", value=df.y1.iloc[-1], min=0.0)
tit_model.set_param_hint("S1_2", value=df.y2.iloc[-1], min=0.0)
pars = tit_model.make_params()
# res = tit_model.fit([df.y1, df.y2], pars, x=df.x)
res = tit_model.fit(np.r_[df.y1, df.y2], pars, x=df.x)
print(res.fit_report())
[[Model]]
Model(tit_pH2)
[[Fit Statistics]]
# fitting method = leastsq
# function evals = 37
# data points = 14
# variables = 5
chi-square = 12471473.3
reduced chi-square = 1385719.25
Akaike info crit = 201.798560
Bayesian info crit = 204.993846
R-squared = 0.99794717
[[Variables]]
S0_1: 26601.3458 +/- 1425.69913 (5.36%) (init = 29657)
S0_2: 25084.4189 +/- 1337.07982 (5.33%) (init = 22885)
S1_1: 54034.5806 +/- 627.642479 (1.16%) (init = 51205)
S1_2: 1473.57871 +/- 616.944649 (41.87%) (init = 1358)
K: 8.07255029 +/- 0.07600777 (0.94%) (init = 7)
[[Correlations]] (unreported correlations are < 0.100)
C(S0_1, K) = -0.6816
C(S0_2, K) = +0.6255
C(S0_1, S0_2) = -0.4264
C(S1_1, K) = -0.3611
C(S1_2, K) = +0.3161
C(S0_2, S1_1) = -0.2259
C(S0_1, S1_2) = -0.2155
C(S1_1, S1_2) = -0.1141
[50]:
dely = res.eval_uncertainty(x=xfit)
# res.plot() # this return error because of the global fit
[51]:
def fit_pH(fp):
df = pd.read_csv(fp)
def tit_pH(x, SA, SB, pK):
return (SB + SA * 10 ** (pK - x)) / (1 + 10 ** (pK - x))
mod = lmfit.Model(tit_pH)
pars = mod.make_params(SA=10000, SB=7e3, pK=7)
result = mod.fit(df.y2, pars, x=df.x)
return result, df.y2, df.x, mod
# r,y,x,model = fit_pH("/home/dati/ibf/IBF/Database/Random mutag results/Liasan-analyses/2016-05-19/2014-02-20/pH/dat/C12.dat")
r, y, x, model = fit_pH("../../tests/data/H04.dat")
xfit = np.linspace(x.min(), x.max(), 50)
dely = r.eval_uncertainty(x=xfit) * 1
best_fit = r.eval(x=xfit)
plt.plot(x, y, "o")
plt.plot(xfit, best_fit, "-.")
plt.fill_between(xfit, best_fit - dely, best_fit + dely, color="#FEDCBA", alpha=0.5)
r.conf_interval(sigmas=[2])
print(r.ci_report(with_offset=False, ndigits=2))
99.73% 95.45% 68.27% _BEST_ 68.27% 95.45% 99.73%
SA:2338.404511.625450.156052.536642.137512.329321.96
SB:33406.9634609.8235170.9935544.4435920.0736492.8937756.24
pK: 6.47 6.60 6.66 6.70 6.74 6.80 6.93

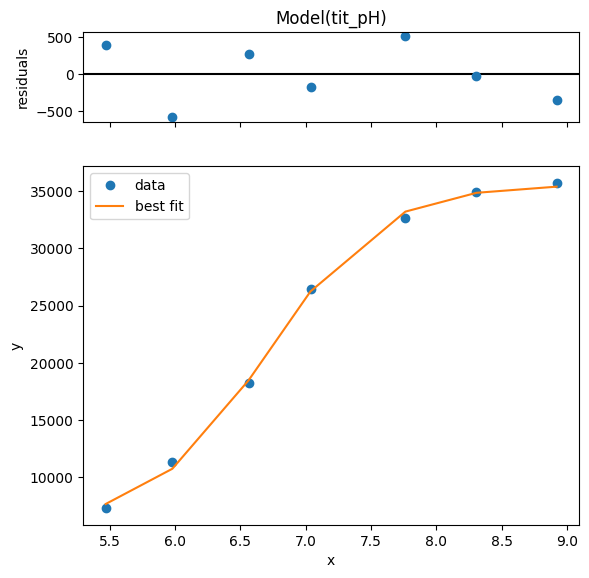

[52]:
g = r.plot()
[53]:
print(r.ci_report())
99.73% 95.45% 68.27% _BEST_ 68.27% 95.45% 99.73%
SA:-3714.13150-1540.91238-602.378536052.53269+589.59734+1459.78928+3269.42485
SB:-2137.47758-934.62678-373.4502035544.44185+375.62906+948.44608+2211.79840
pK: -0.23398 -0.10021 -0.03976 6.70123 +0.03971 +0.09989 +0.23227
[54]:
emcee_kws = dict(steps=2000, burn=500, thin=2, is_weighted=False, progress=False)
emcee_params = r.params.copy()
emcee_params.add("__lnsigma", value=np.log(0.1), min=np.log(0.001), max=np.log(2000.0))
result_emcee = model.fit(
data=y,
x=x,
params=emcee_params,
method="emcee",
nan_policy="omit",
fit_kws=emcee_kws,
)
lmfit.report_fit(result_emcee)
The chain is shorter than 50 times the integrated autocorrelation time for 4 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 40;
tau: [44.76109263 47.08681846 42.75125412 89.09478397]
[[Fit Statistics]]
# fitting method = emcee
# function evals = 200000
# data points = 7
# variables = 4
chi-square = 3.40256279
reduced chi-square = 1.13418760
Akaike info crit = 2.95033132
Bayesian info crit = 2.73397192
R-squared = 1.00000000
[[Variables]]
SA: 6045.63837 +/- 595.804798 (9.86%) (init = 6052.533)
SB: 35540.8754 +/- 365.813058 (1.03%) (init = 35544.44)
pK: 6.70082176 +/- 0.03946928 (0.59%) (init = 6.701226)
__lnsigma: 6.29181634 +/- 0.38021005 (6.04%) (init = -2.302585)
[[Correlations]] (unreported correlations are < 0.100)
C(SA, pK) = +0.7193
C(SB, pK) = +0.5145
C(SA, SB) = +0.2075

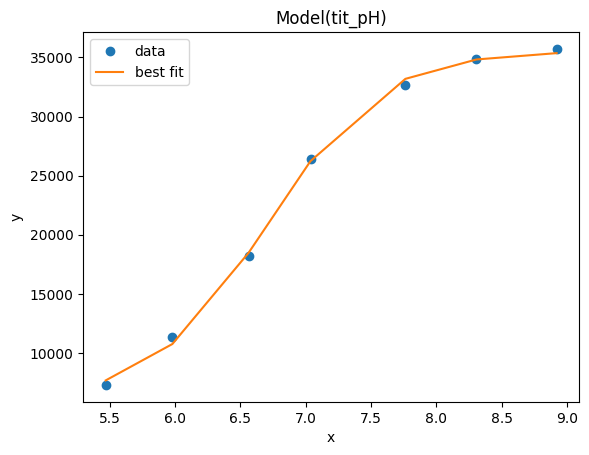

[55]:
result_emcee.plot_fit()
[55]:
<Axes: title={'center': 'Model(tit_pH)'}, xlabel='x', ylabel='y'>
[56]:
emcee_corner = corner.corner(
result_emcee.flatchain,
labels=result_emcee.var_names,
truths=list(result_emcee.params.valuesdict().values()),
)
WARNING:root:Pandas support in corner is deprecated; use ArviZ directly
[57]:
highest_prob = np.argmax(result_emcee.lnprob)
hp_loc = np.unravel_index(highest_prob, result_emcee.lnprob.shape)
mle_soln = result_emcee.chain[hp_loc]
print("\nMaximum Likelihood Estimation (MLE):")
print("----------------------------------")
for ix, param in enumerate(emcee_params):
print(f"{param}: {mle_soln[ix]:.3f}")
quantiles = np.percentile(result_emcee.flatchain["pK"], [2.28, 15.9, 50, 84.2, 97.7])
print(f"\n\n1 sigma spread = {0.5 * (quantiles[3] - quantiles[1]):.3f}")
print(f"2 sigma spread = {0.5 * (quantiles[4] - quantiles[0]):.3f}")
Maximum Likelihood Estimation (MLE):
----------------------------------
SA: 6081.043
SB: 35529.945
pK: 6.703
__lnsigma: 5.930
1 sigma spread = 0.040
2 sigma spread = 0.096
1.5. Model: example 2P Cl–ratio#
[60]:
def fit_Rcl(fp):
df = pd.read_table(fp)
def R_Cl(cl, R0, R1, Kd):
return (R1 * cl + R0 * Kd) / (Kd + cl)
mod = lmfit.Model(R_Cl)
pars = mod.make_params(R0=0.8, R1=0.05, Kd=10)
result = mod.fit(df.R, pars, cl=df.cl)
return result, df.R, df.cl, mod

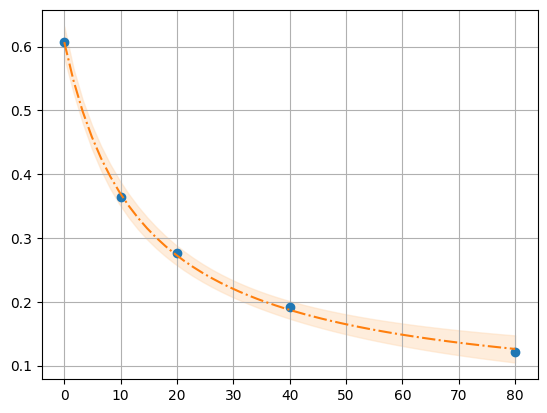

r, y, x, model = fit_Rcl("../../tests/data/ratio2P.txt")
xfit = np.linspace(x.min(), x.max(), 50)
dely = r.eval_uncertainty(cl=xfit) * 3
best_fit = r.eval(cl=xfit)
plt.plot(x, y, "o")
plt.grid()
plt.plot(xfit, best_fit, "-.")
plt.fill_between(xfit, best_fit - dely, best_fit + dely, color="#FEDCBA", alpha=0.5)
r.conf_interval(sigmas=[2])
print(r.ci_report(with_offset=False, ndigits=2))
99.73% 95.45% 68.27% _BEST_ 68.27% 95.45% 99.73%
R0: 0.49 0.58 0.60 0.61 0.62 0.64 0.73
R1: -0.30 -0.01 0.03 0.04 0.06 0.09 0.20
Kd: 2.95 10.09 12.51 13.66 14.91 18.49 59.97
[67]:
emcee_kws = dict(is_weighted=False, progress=False)
emcee_params = r.params.copy()
emcee_params.add(
"__lnsigma", value=np.log(0.1), min=np.log(0.000001), max=np.log(2000.0)
)
result_emcee = model.fit(
data=y,
cl=x,
params=emcee_params,
method="emcee",
nan_policy="omit",
fit_kws=emcee_kws,
)
lmfit.report_fit(result_emcee)
The chain is shorter than 50 times the integrated autocorrelation time for 4 parameter(s). Use this estimate with caution and run a longer chain!
N/50 = 20;
tau: [39.14220672 38.36658557 38.7322156 67.05237463]
[[Fit Statistics]]
# fitting method = emcee
# function evals = 100000
# data points = 5
# variables = 4
chi-square = 1.08017724
reduced chi-square = 1.08017724
Akaike info crit = 0.33843612
Bayesian info crit = -1.22381223
R-squared = -6.60071574
[[Variables]]
R0: 0.60626860 +/- 0.00979297 (1.62%) (init = 0.6071065)
R1: 0.04307811 +/- 0.01548680 (35.95%) (init = 0.04390399)
Kd: 13.7802460 +/- 1.41767925 (10.29%) (init = 13.66125)
__lnsigma: -4.76389554 +/- 0.79262984 (16.64%) (init = -2.302585)
[[Correlations]] (unreported correlations are < 0.100)
C(R1, Kd) = -0.8461
C(R0, Kd) = -0.5866
C(R0, R1) = +0.4901
C(Kd, __lnsigma) = +0.3430
C(R1, __lnsigma) = -0.3278
C(R0, __lnsigma) = -0.2640
[68]:
emcee_corner = corner.corner(
result_emcee.flatchain,
labels=result_emcee.var_names,
truths=list(result_emcee.params.valuesdict().values()),
)
WARNING:root:Pandas support in corner is deprecated; use ArviZ directly
WARNING:root:Too few points to create valid contours
WARNING:root:Too few points to create valid contours
WARNING:root:Too few points to create valid contours
[69]:
highest_prob = np.argmax(result_emcee.lnprob)
hp_loc = np.unravel_index(highest_prob, result_emcee.lnprob.shape)
mle_soln = result_emcee.chain[hp_loc]
print("\nMaximum Likelihood Estimation (MLE):")
print("----------------------------------")
for ix, param in enumerate(emcee_params):
print(f"{param}: {mle_soln[ix]:.3f}")
quantiles = np.percentile(result_emcee.flatchain["Kd"], [2.28, 15.9, 50, 84.2, 97.7])
print(f"\n\n1 sigma spread = {0.5 * (quantiles[3] - quantiles[1]):.3f}")
print(f"2 sigma spread = {0.5 * (quantiles[4] - quantiles[0]):.3f}")
Maximum Likelihood Estimation (MLE):
----------------------------------
R0: 0.607
R1: 0.044
Kd: 13.649
__lnsigma: -5.596
1 sigma spread = 1.421
2 sigma spread = 7.719
